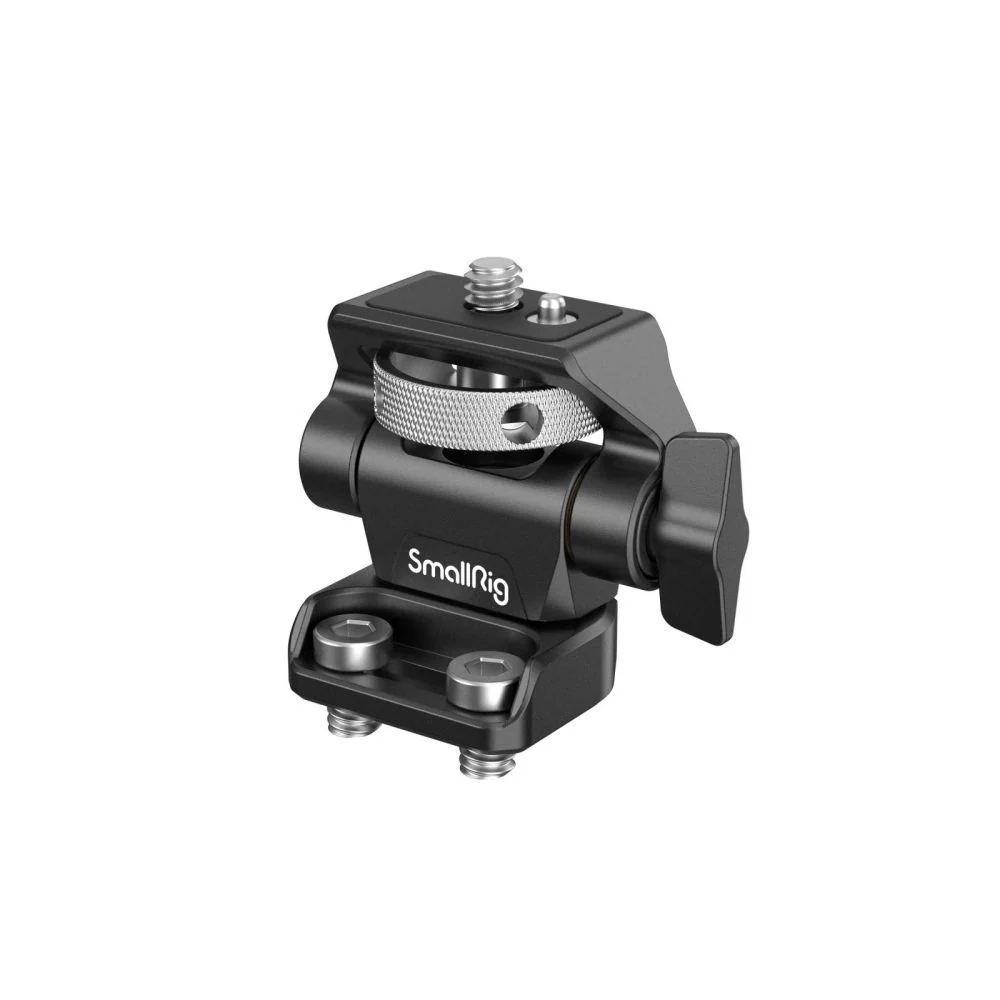

SmallRig Swivel and Tilt Adjustable Monitor Mount with Screws Mount 2904B

- Tested durability, with tilt load capacity, decreased by no more than 20% after 10,000 tilts.

- Bouncy locating pins and silicone pad prevent twisting.

- Holes in thumbscrews for quick release of the mount.

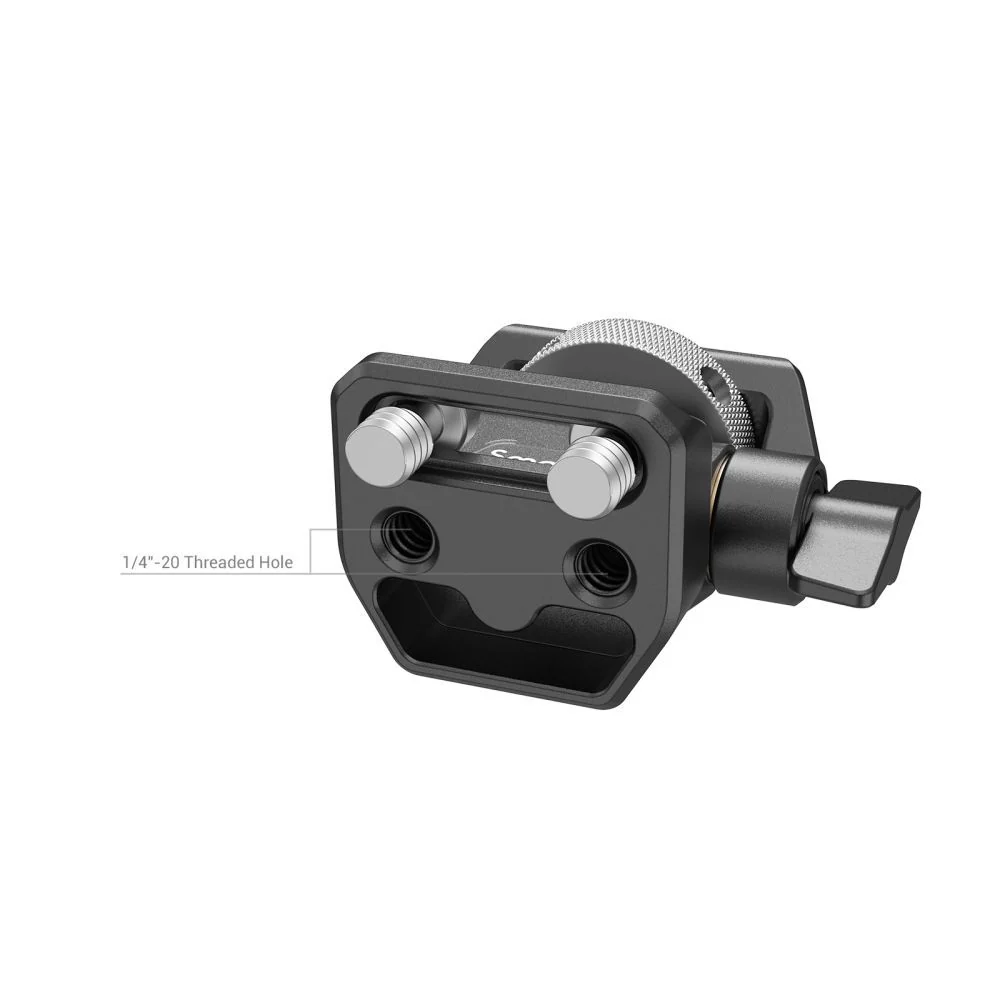

- 1/4"-20 threaded holes at the bottom for a magic arm.

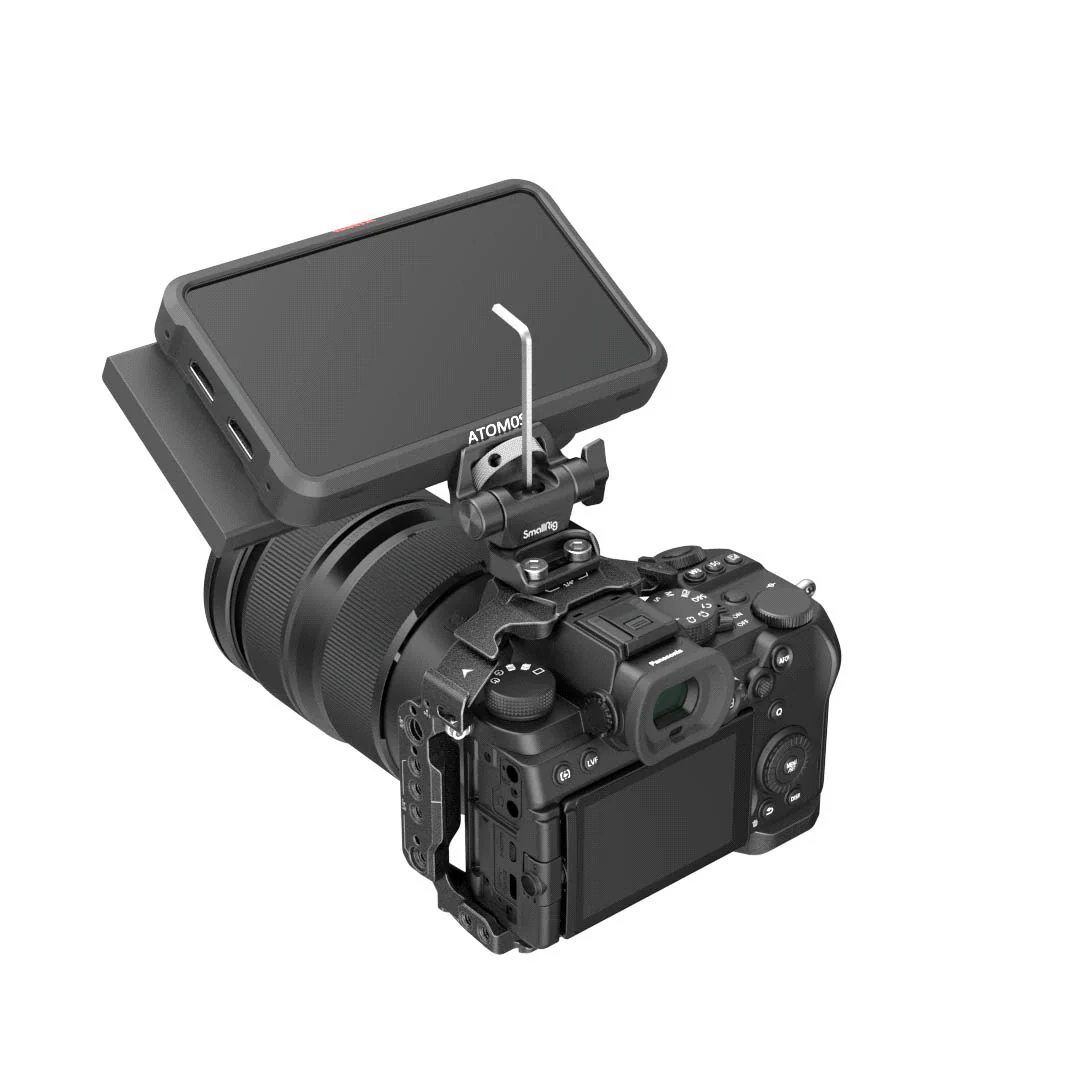

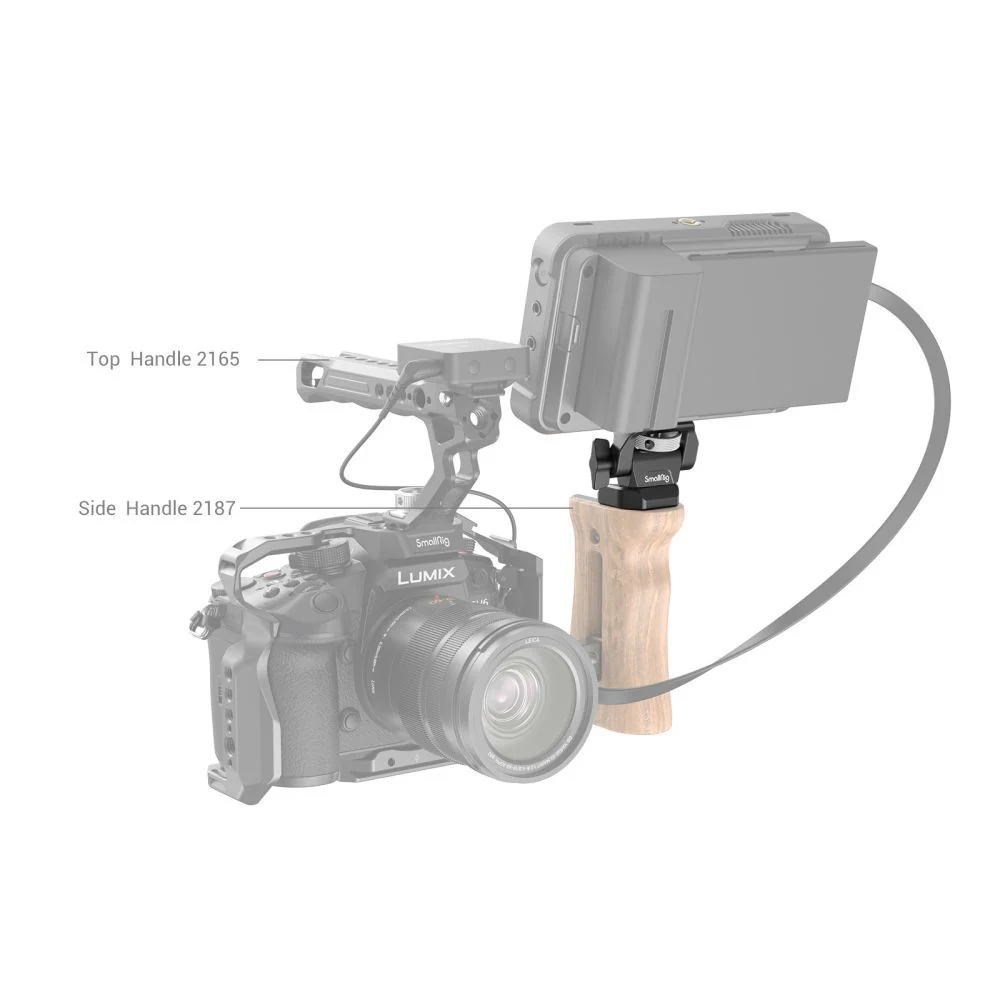

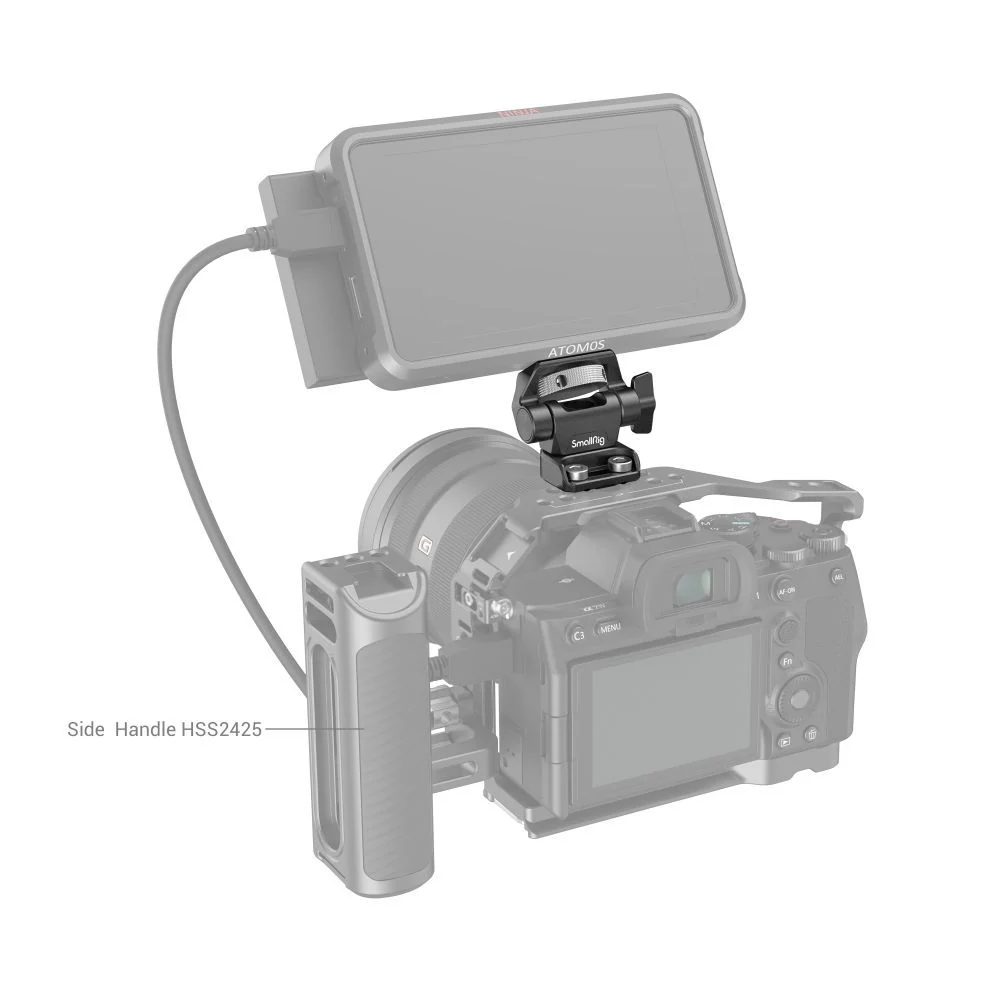

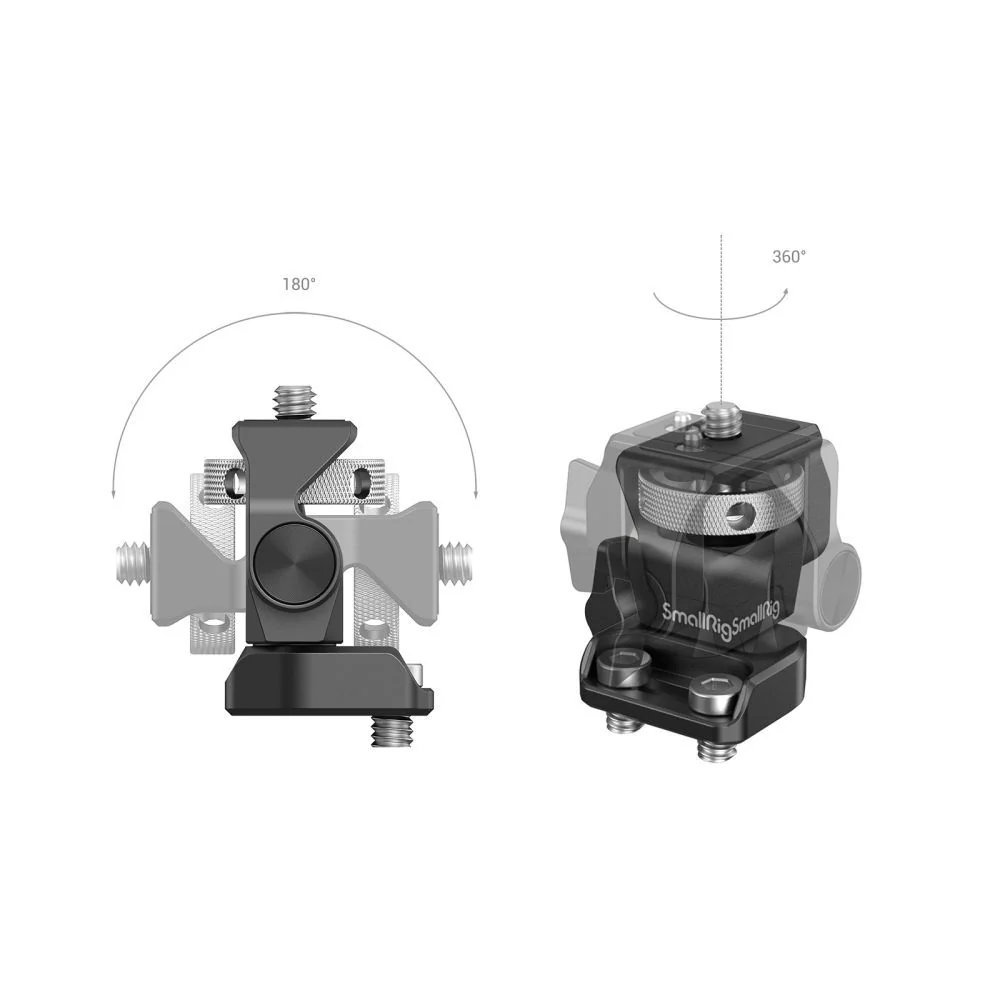

SmallRig Swivel and Tilt Adjustable Monitor Mount with 1/4"-20 Screws Mount 2904 is designed to hold your monitor for easy monitoring. It comes with bottom 1/4”-20 screws for accessories with 1/4"-20 threaded holes (hole center distance≤18mm) and a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and swivel 360°. Its tilt axis is quickly tightened via a knob to suit the different weights and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure Ninja V/ V+, and 1/4"-20 threaded holes at the bottom allow attaching Magic Arm 2070, etc. The thumbscrews have holes for Allen's wrench to facilitate assembly and disassembly.

IMPORTANT

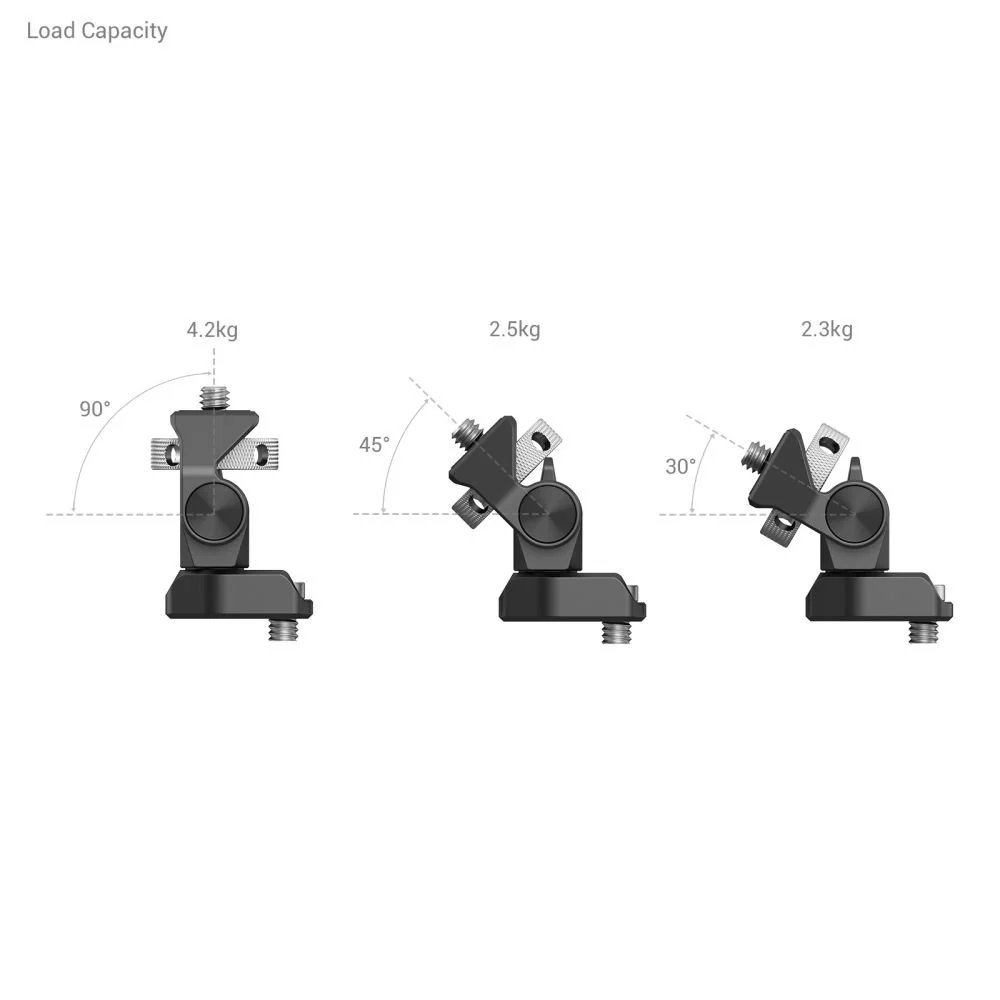

90° load capacity: <4.2kg

45° tilt load capacity: <2.5kg

30° tilt load capacity: <2.3kg

Key Features

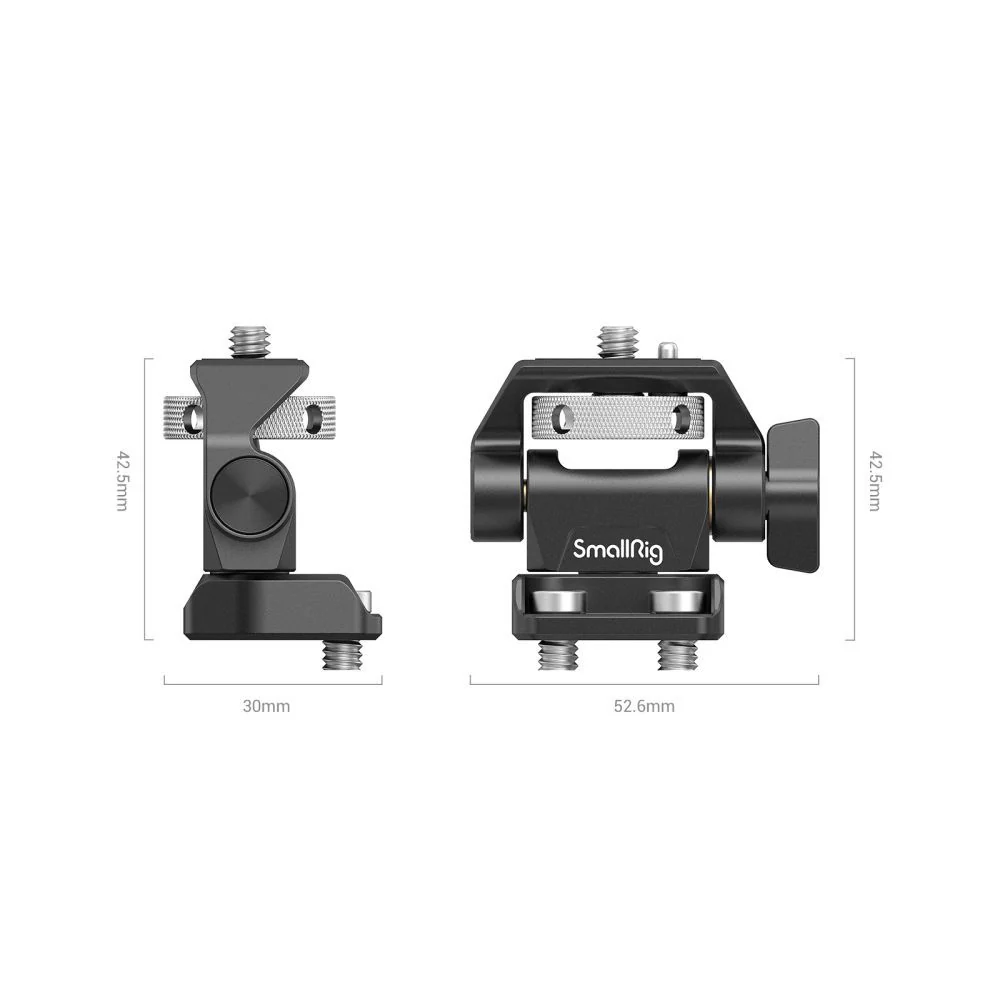

Product Dimensions: 42.5x 52.6 x 30mm

Package Dimensions: 78x 67 x 42mm

Net Weight: 81g±5g

Package Weight: 101g±5g

Material(s): Aluminum Alloy, Stainless Steel

Compatibility

- 5” and 7” monitor

- Accessories with 1/4"-20 threaded holes (hole center distance≤18mm) such as cage, top plate, handle, etc

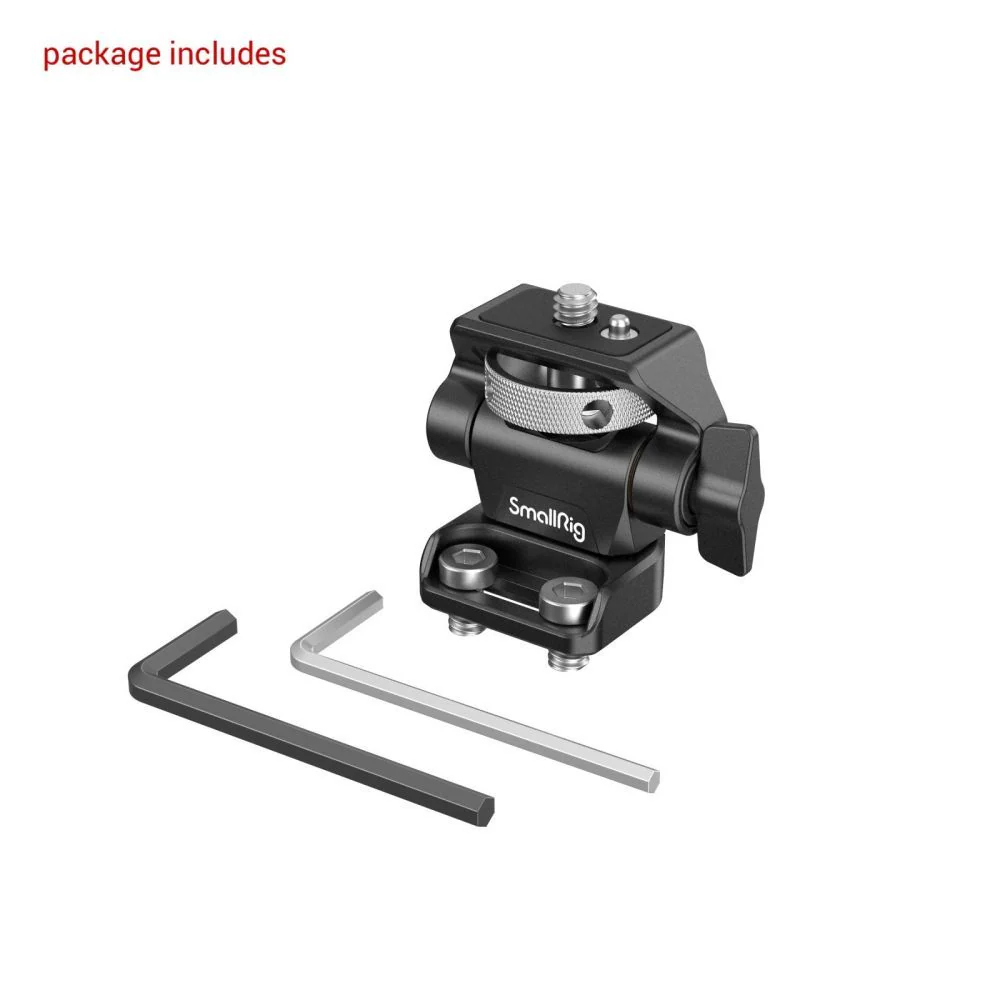

What's in the box?

1x Monitor Mount

2x Allen Wrench
