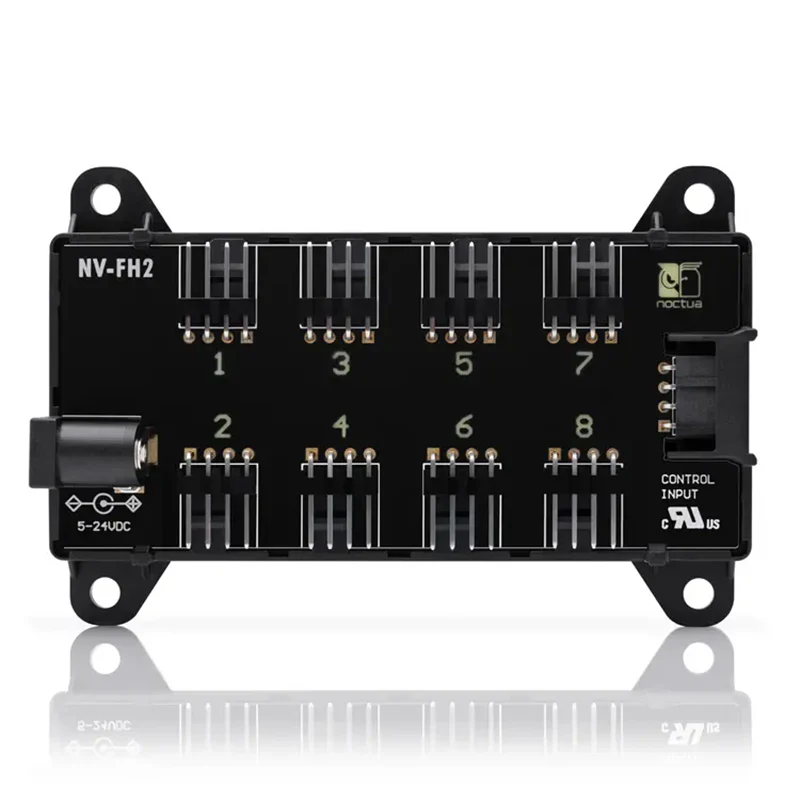

Noctua 8 Channel PWM Fan Hub (NV-FH2)
NOTE: Make sure not to exceed fan header current limits. Do not place directly on HDDs.
SPECIFICATIONS:
Colour |
Black |
Input connector |
Barrel connector 5.5mm, 4-pin PWM |
Fan connector |
4-pin PWM |
Max. power via 4-pin PWM input |
22 W |
Max. power via barrel connector |
60 W |
Operating voltage |
5-24V |
Size |
93 x 62 x 12.5 mm (without cover) / 93 x 62 x 19 mm (with cover) |
Weight |
47 g |
Fan compatibility |
All Noctua 24V, 12V, and 5V fans, many third party fans |
Scope of delivery |
NV-FH2 fan hub |
