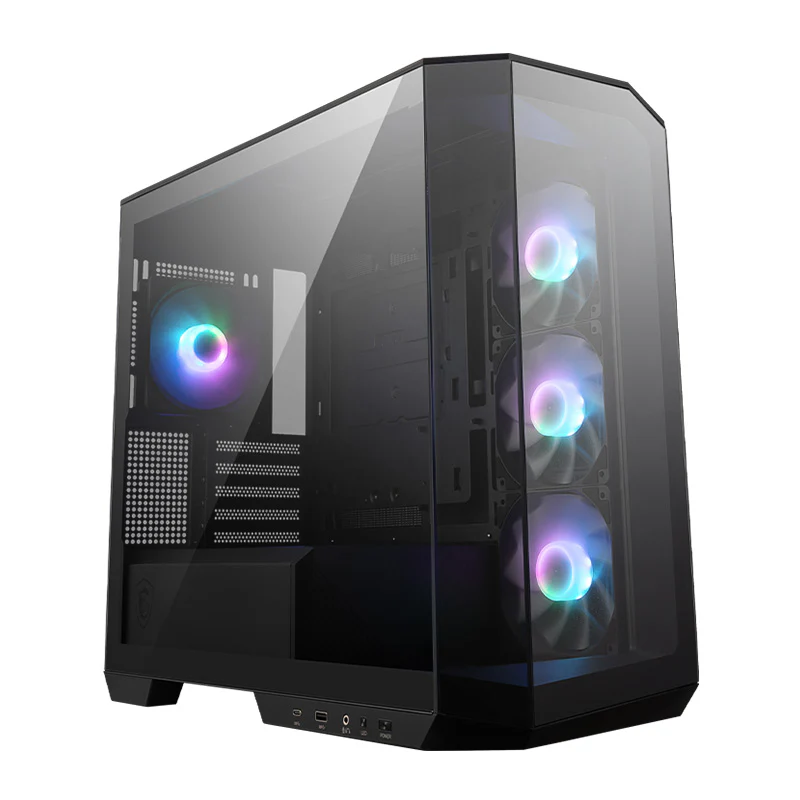

MSI MAG PANO M100R PZ BLACK Micro ATX Case (Black)

Form factor

Micro- ATX Tower

I/O ports

1 x USB 3.2 Gen 1 Type-A

1 x USB 3.2 Gen 2x2 Type-C

1 x Audio-Out / Mic-in

1 x LED Switch Button

1 x Power Button

Drive mount support

1 x 2.5

1 x 2.5 /3.5 combo

(up to 2 x 2.5 or 1 x 2.5 + 1 x 3.5 )

Case expansion slots

5

Maximum PSU length

200 mm / 7.87 inches

Maximum GPU length

390 mm / 15.35 inches

*Support horizontal installation only.

Maximum CPU cooler length

175 mm / 6.9 inches

Lighting

Side: 3 x ARGB Fan (Reverse-blade)

Rear: 1 x ARGB Fan

Power supply

ATX

Fan size support

Top: 3 x 120 mm / 2 x 140 mm

Front: NA

Rear: 1 x 120 mm / 1 x 140 mm

Side: 3 x 120 mm

Bottom: 1 x 120 mm

PSU Shroud: 2 x 120 mm

Pre-install fan

Side: 3 x 120 mm

Rear: 1 x 120 mm

Radiator layout

Top: 120 / 240 / 360 mm

Front: NA

Rear: 120 / 140 mm

Side: NA

Bottom: NA

Support MB form factor

M-ATX (Back-connect supported) / ITX

Dimension

440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches

Connection

1x USB 3.2 Gen 2x2 Type-C

1x USB 3.2 Gen 1 Type-A

Mic In/ Audio Out

LED Switch Button

Power Button
