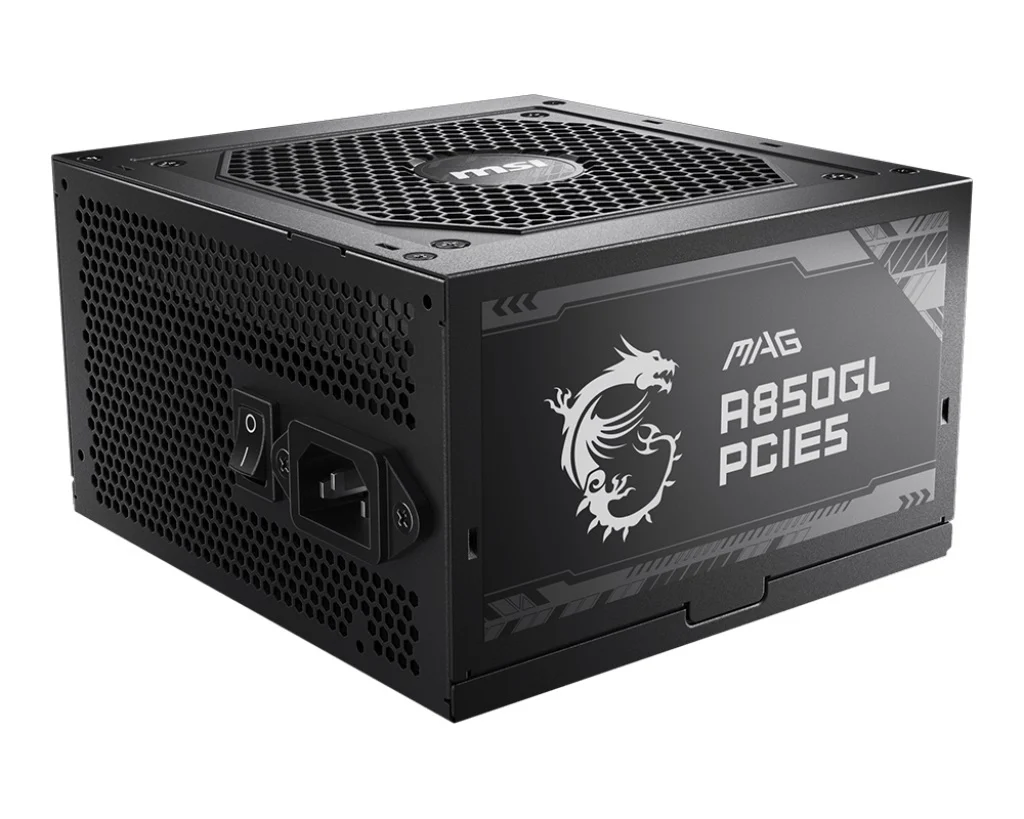

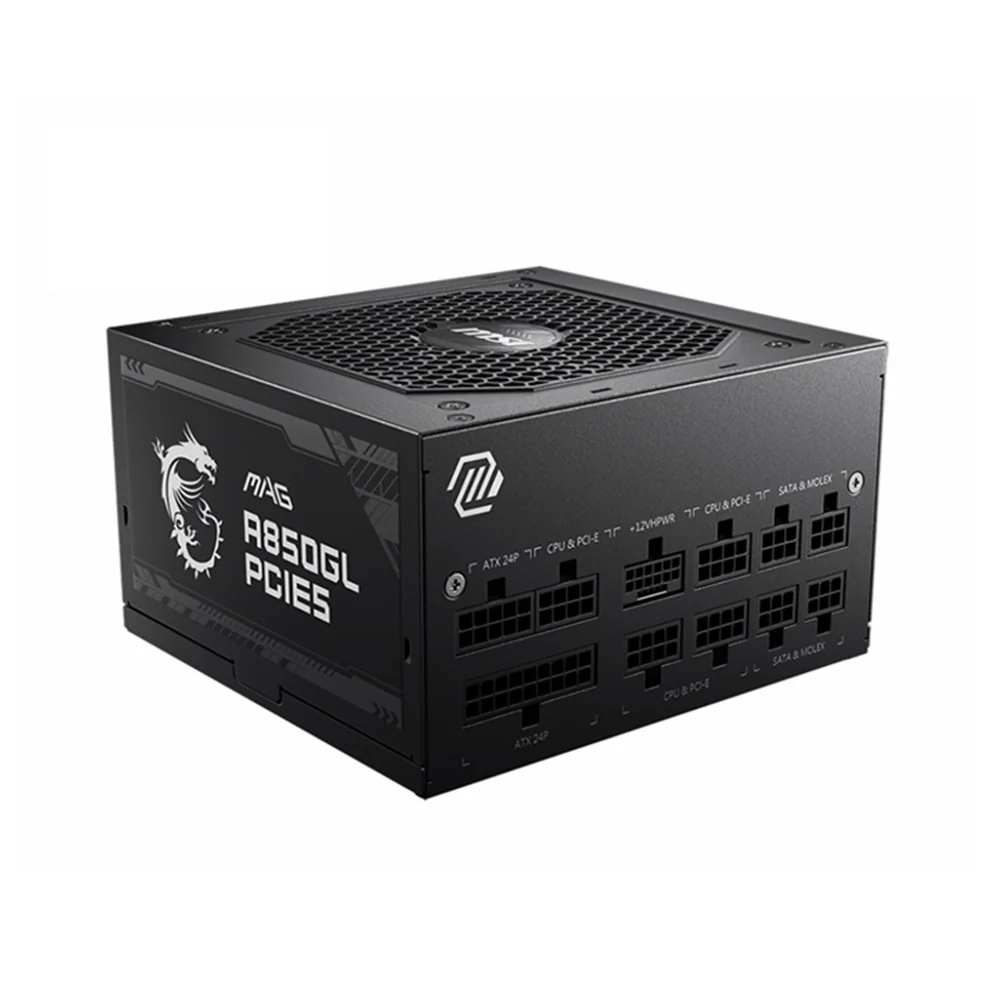

MSI MAG A850GL PCIE5 850W PSU

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit

FEATURES:

• ATX 3.0 compatible, native PCIe 5.0 connector
• Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
• Full modular design,Flat cables
• 80 Plus Gold certified for high efficiency
• Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

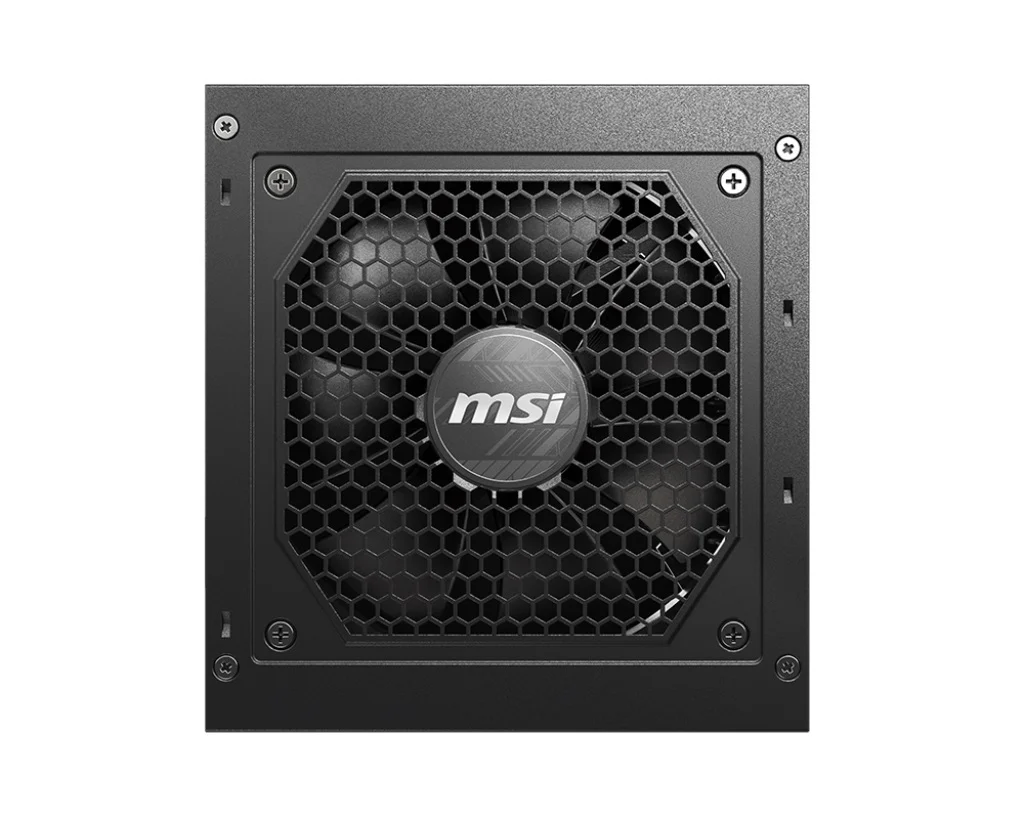

• 120mm Fluid Dynamic Bearing Fan
• LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS:

• EFFICIENCY RATING 80 PLUS Gold (up to 90%)
• MODULAR Yes (full modular)
• FAN SIZE 120 mm
• FAN BEARING Fluid Dynamic Bearing
• DIMENSIONS (DXWXH) 140 x 150 x 86 mm
• PFC TYPE Active PFC
• INPUT VOLTAGE RANGE 100~240 VAC
• POWER WATT 850W
• POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs)
• INPUT FREQUENCY RANGE 47-63Hz
• PROTECTION OCP / OVP / OPP / OTP / SCP / UVP

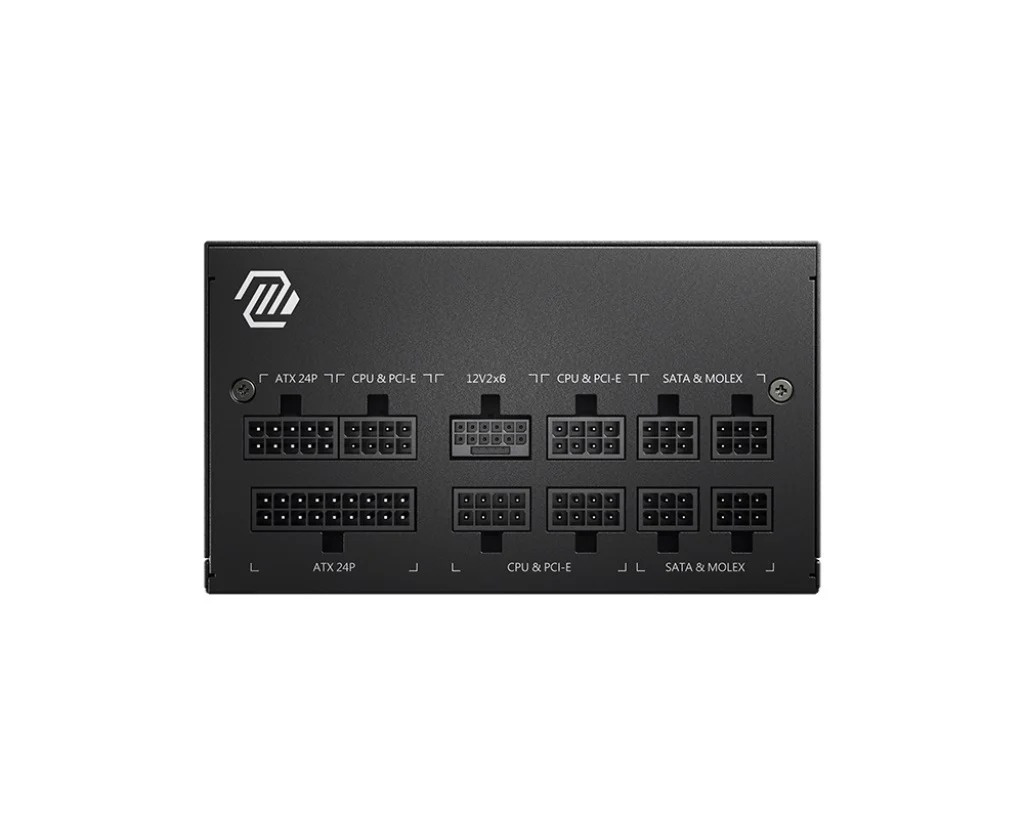

• ATX (24 PIN) 1
• EPS (4+4 PIN) 2
• PCI-E 5.0 (16 PIN) 1 (600W)
• PCI-E (6+2 PIN) 4
• SATA (15 PIN) 8
• MOLEX (4 PIN) 4
• FDD (4 PIN) 1
