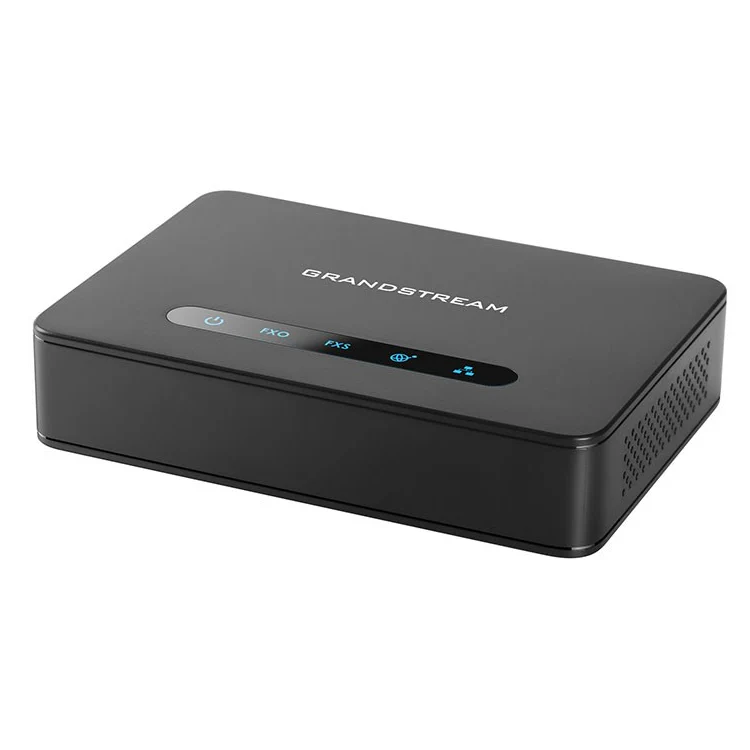

Grandstream HT813 Analog FXS VoIP Gateway with Gigabit NAT Router

1 FXS, 1 FXO, 2 GIGE NAT Router

Key Features:

• 2 SIP profiles
• 1 FXS port
• 1 FXO port
• Dual 100Mbps LAN & WAN ports
• Lifeline support
• 3-way voice conferencing per port
• Automated & secure provisioning options
• T.38 Fax for reliable Fax-over-IP
• Failover SIP server
• Strong AES encryption

General

• Telephone Interfaces - 1 RJ11 FXS port, 1 RJ11 FXO PSTN line port with lifeline support
• Network Interface - 2 10/100Mbps ports (RJ45) with integrated NAT router
• LED Indicators - POWER, LAN, WAN, FXS, FXO
• Factory Reset Button - Yes
• Compliance - FCC/CE/C-TICK/ITU-K.21

Signaling

• QoS Layer - 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
• DTMF Method - In-audio, RFC2833 and/or SIP INFO
• Provisioning and Control - HTTP, HTTPS, TFTP, SSH, TR-069, secure and automated provisioning using AES encryption, syslog

Security

• Media - SRTP
• Control - TLS/SIPS/HTTPS
• Management - Syslog support, telnet, SSH, remote management using web browser

Physical

• Universal Power Supply - Input: 100-240VAC, 50-60Hz ; Output: 12V/0.5A
• Environmental - Operational: 32ºF – 104ºF or 0ºC – 40ºC, Storage: 14ºF – 140ºF or -10ºC – 60ºC, Humidity: 10% – 90% Non-condensing
• Dimension & Weight - 130.5 x 90.5 x 29 mm (L x W x D)
• Weight - 0.142Kg
